Wheel & Tire Integration Engineering — Plus-Sizing, Width Matching & Rolling Geometry

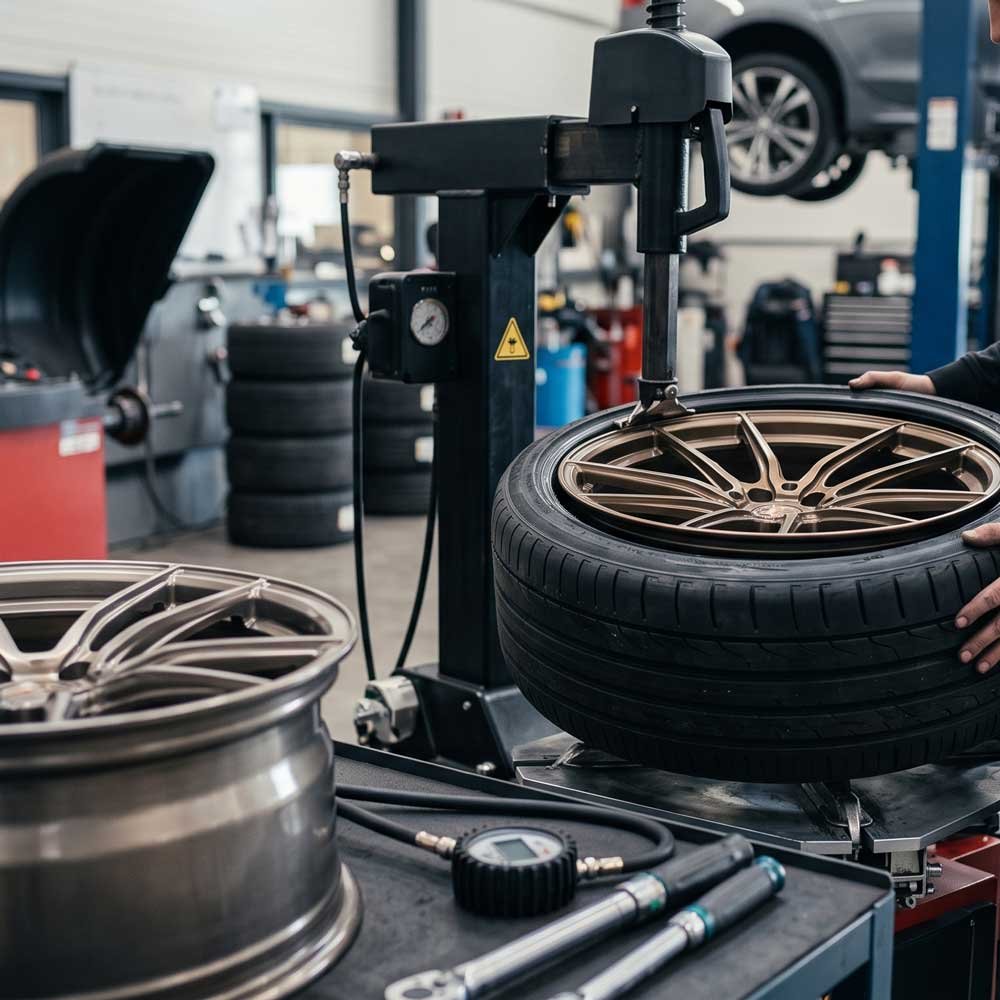

Professional technician mounting a low-profile tire onto a bronze custom forged alloy wheel using a tire changer machine, illustrating proper wheel-to-tire matching and plus-sizing.

In aftermarket wheel upgrades, increasing rim diameter while reducing tire profile is standard practice. However, in B2B engineering and professional wholesale, tire-to-wheel coordination relies on precise mathematical calculations rather than visual estimations.

Incorrectly calculating overall rolling diameter compromises speedometer accuracy, distorts transmission shift mapping, and poses severe hazards to ABS/ESP sensors and all-wheel-drive center differentials. This guide details the Plus-Sizing method, ETRTO rim-to-tire matching matrices, and the critical 3% diameter safety threshold.


1. Deconstructing Tire Codes & Overall Diameter Formulas

A standard passenger radial tire specification is formatted as: 245/40 R19 98Y

   245   /    40         R         19        98        Y
    │          │         │          │         │        │
    │          │         │          │         │        └── Speed Rating
    │          │         │          │         └─────────── Load Index
    │          │         │          └───────────────────── Rim Diameter (in inches)
    │          │         └──────────────────────────────── Radial Construction
    │          └────────────────────────────────────────── Aspect Ratio (%)
    └───────────────────────────────────────────────────── Section Width (in mm)


1.1 The Overall Diameter (OD) Calculation Formula

Engineering verification requires calculating the rolling diameter from baseline specifications using this formula:

Sidewall Height (mm) = Section Width × (Aspect Ratio / 100)

Overall Diameter (mm) = (2 × Sidewall Height) + (Rim Diameter × 25.4)

Example (245/40 R19):
Sidewall Height = 245 × 0.40 = 98.0 mm
Overall Diameter = (2 × 98.0 mm) + (19 × 25.4 mm) = 196.0 mm + 482.6 mm = 678.6 mm

2. Plus-Sizing Rules & The 3% Safety Margin

Plus-Sizing allows engineers to expand rim diameter to sharpen steering response and maximize big brake clearance while maintaining original overall rolling circumference.

2.1 Plus-1 and Plus-2 Concept

  • Plus 1 (+1"): Increase wheel diameter by 1 inch, typically increase tire section width by 10 mm, and decrease aspect ratio by 10 points (e.g., from 225/50 R17 to 235/40 R18).
  • Plus 2 (+2"): Increase wheel diameter by 2 inches, increase section width by 10–20 mm, and decrease aspect ratio by 15–20 points (e.g., from 225/50 R17 to 245/35 R19).

2.2 Critical Tolerance Limits

  • General Passenger Vehicles: Total rolling diameter variation must remain within ±3.0% of the OEM specification (±1.5% recommended for high-performance and EV platforms).
  • All-Wheel-Drive (AWD) Staggered Setups: For vehicles running wider rear wheels, the rolling diameter variance between front and rear axles must strictly remain below 1.0%. Exceeding 1.0% forces continuous slip resistance across the center transfer case, leading to transmission overheating and mechanical failure.

3. Rim Width (J) to Tire Section Width Matching Matrix

Every rim width corresponds to an industry-standard tire width envelope defined by ETRTO standards:

Rim Width (J)Ideal Recommended Tire WidthMinimum Usable (Mild Stretch)Maximum Usable (Pinch / Bulge)
7.5 J215 mm / 225 mm205 mm235 mm
8.0 J225 mm / 235 mm215 mm245 mm
8.5 J235 mm / 245 mm225 mm255 mm
9.0 J245 mm / 255 mm235 mm265 mm
9.5 J255 mm / 265 mm245 mm275 mm
10.0 J265 mm / 275 mm255 mm285 mm
10.5 J275 mm / 285 mm265 mm295 mm
11.0 J295 mm / 305 mm285 mm315 mm

3.1 Structural Consequences: Stretch vs. Pinch

  • Tire Stretch: Installing a narrower tire on a wide rim angles the sidewalls outward. This sharpens steering turn-in response but exposes the outer rim flange directly to curb damage and diminishes vertical shock absorption.
  • Tire Pinch (Mushrooming): Squeezing an oversized tire onto a narrow rim produces convex bulging sidewalls. Lateral deflection under load causes vague steering feel and excessive body roll during high-speed cornering.

4. Powertrain & Electronic System Interactions

Altering rolling diameter creates downstream calibration variances across vehicle electronic control units:

4.1 Speedometer Calibration Drift

Vehicle speed is read from hub rotation counts. The relationship follows this ratio:

Actual Speed = Indicated Speed × (New Diameter / Original Diameter)

Installing oversized tires causes the speedometer to under-read (e.g., displaying 100 km/h when actual road speed is 104 km/h), creating speeding ticket risks and invalidating onboard trip loggers.

4.2 Final Drive & Torque Delivery

A taller overall tire functions like a taller final drive gear. While highway engine cruising RPM may drop slightly, wheel-hub torque multiplication decreases, making launch acceleration feel sluggish.

4.3 Traction Control & Stability Systems (ABS/ESP)

Factory stability programs are mapped to specific tire revs-per-mile values. Excessive diameter mismatches confuse wheel speed sensors, triggering false traction control interventions, ABS cycling errors, or powertrain fault codes.
